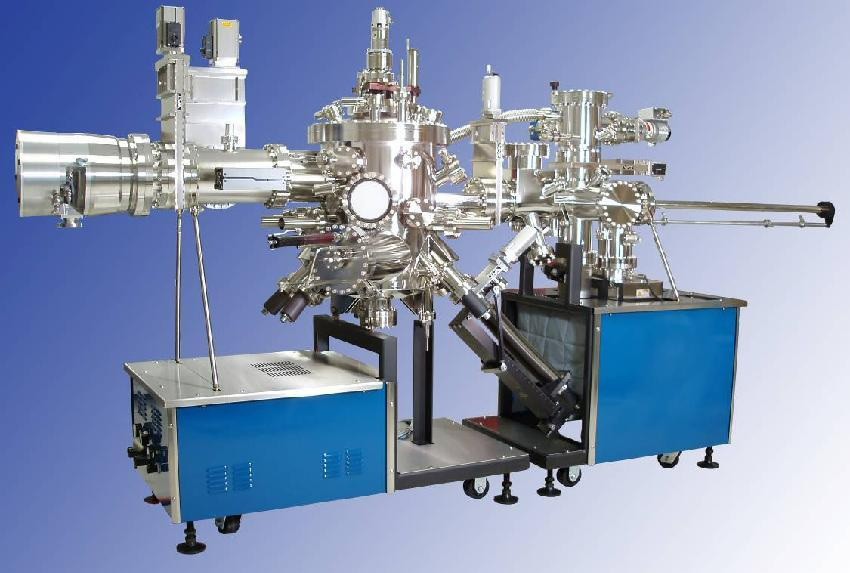

Molecular Beam Epitaxy (MBE)

microCMA

Molecular beam epitaxy (MBE) is a thin-film deposition technique used to create high-quality, single-crystal films with atomic-level precision. Auger electron spectroscopy (AES) is a surface-sensitive analytical technique that can be used to characterize the composition and electronic structure of the films grown by MBE.

How Molecular Beam Epitaxy Works:

MBE growth occurs in an ultra-high vacuum (UHV) environment to minimize contamination and ensure the purity of the deposited materials.

Separate sources, called effusion cells or Knudsen cells, are used to generate molecular beams of the desired elements or compounds. These beams are directed towards the substrate, where they condense and form a thin film.

A single-crystal substrate is heated to a specific temperature to promote the growth of an epitaxial film, meaning the film's crystal structure aligns with the substrate's lattice.

MBE allows for highly accurate control over the film's thickness, composition, and doping levels by adjusting the flux of the molecular beams, the substrate temperature, and the growth time.

The Role of Auger Electron Spectroscopy:

AES is a surface-sensitive technique that can provide information about the elemental composition and chemical bonding of the surface of the MBE-grown films.

By analyzing the Auger electron spectra, researchers can determine the elemental composition of the film and identify any impurities or defects present. AES can also provide information about the chemical state of the atoms in the film, such as oxidation states or bonding configurations.

Once the film is grown, AES can be used to analyze its surface composition, identify any impurities or defects, and determine the chemical state of the atoms.

In summary, MBE is a powerful technique for growing high-quality thin films with precise control over their composition, thickness, and doping levels. AES is a surface-sensitive analytical technique that can be used to characterize the composition, structure, and electronic properties of these films, providing valuable insights into the growth process and the film's properties.
